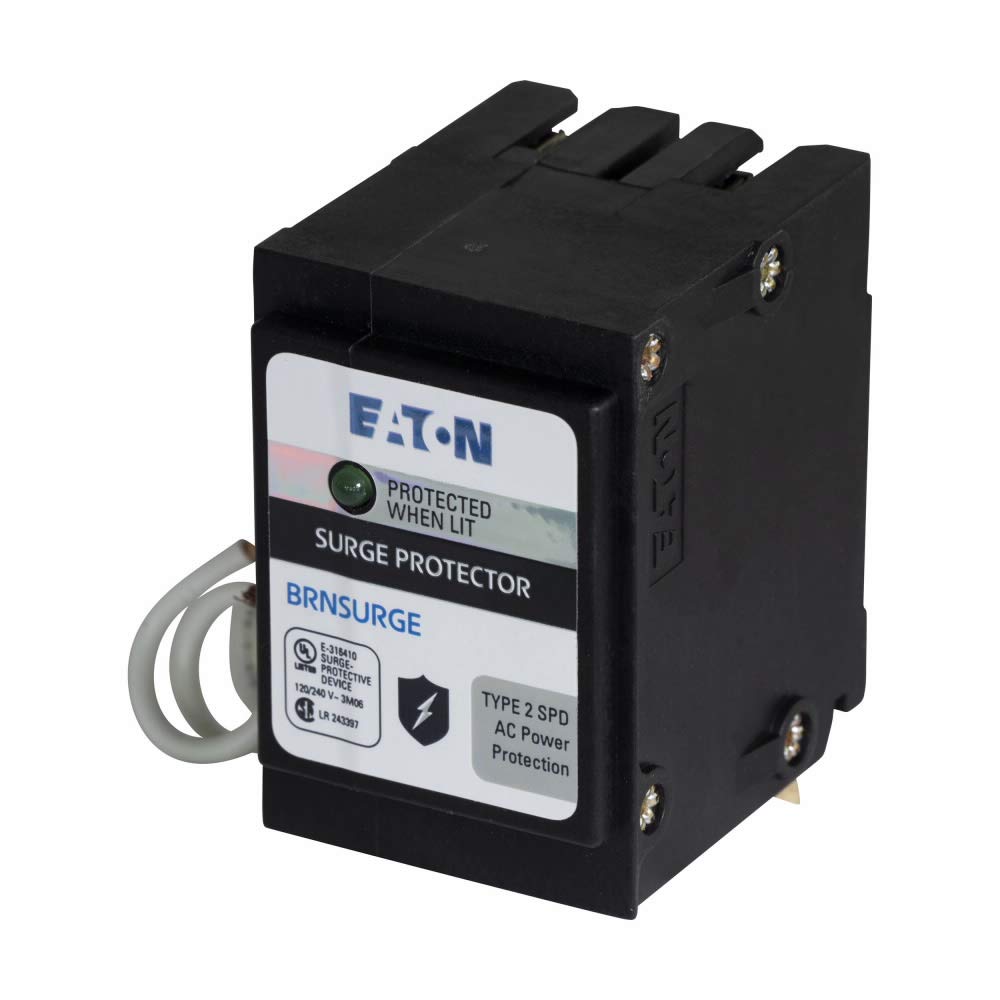

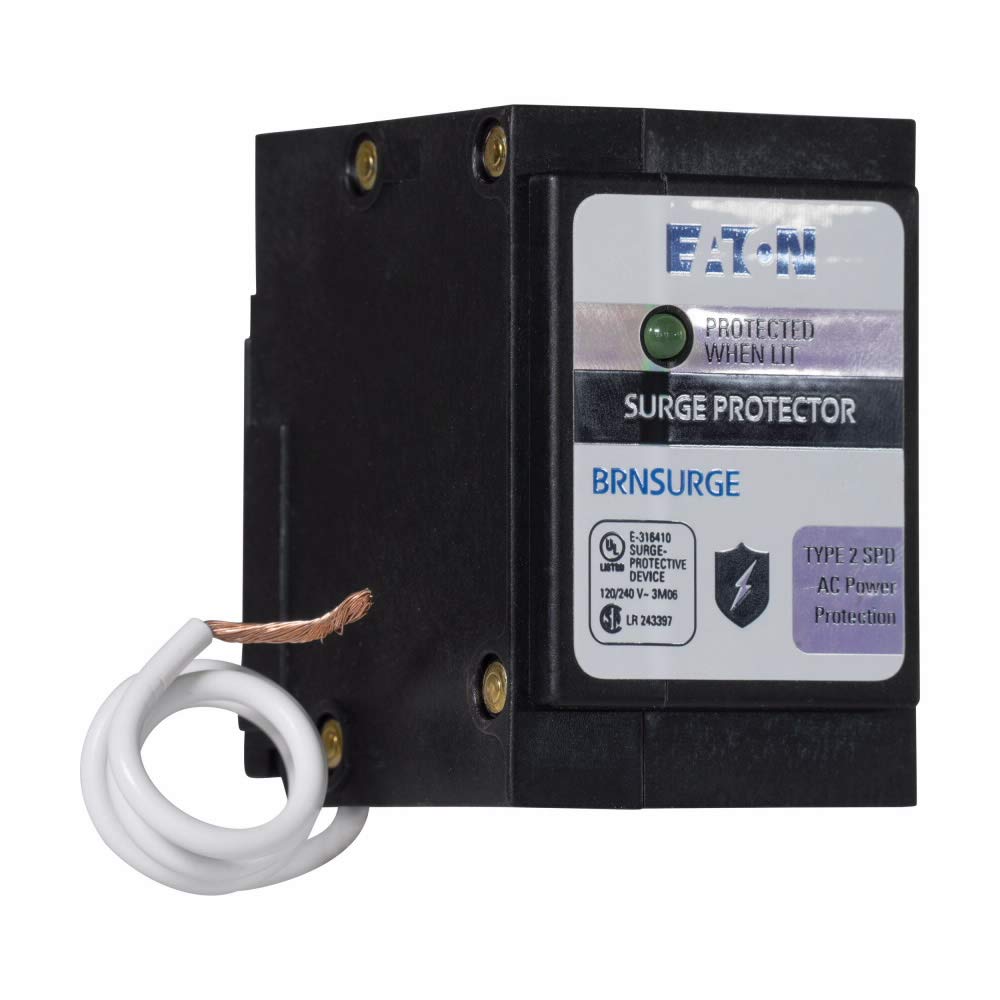

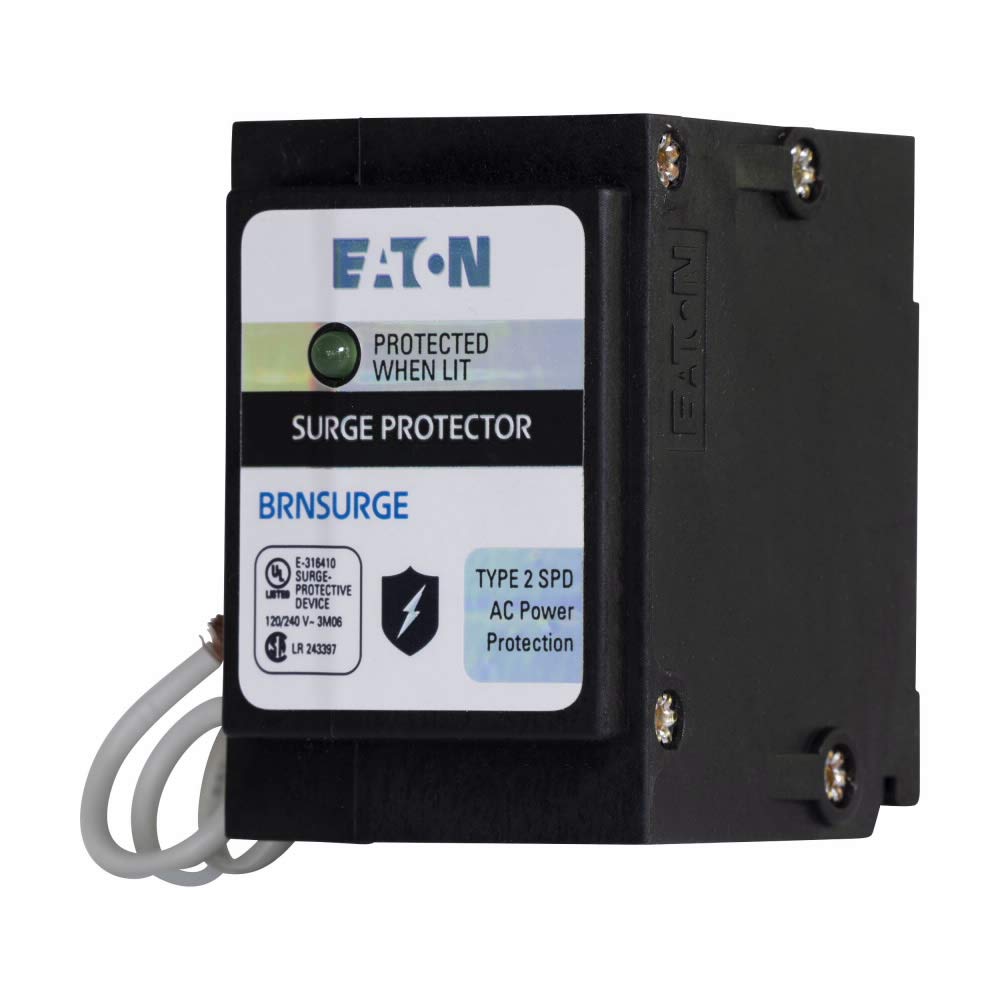

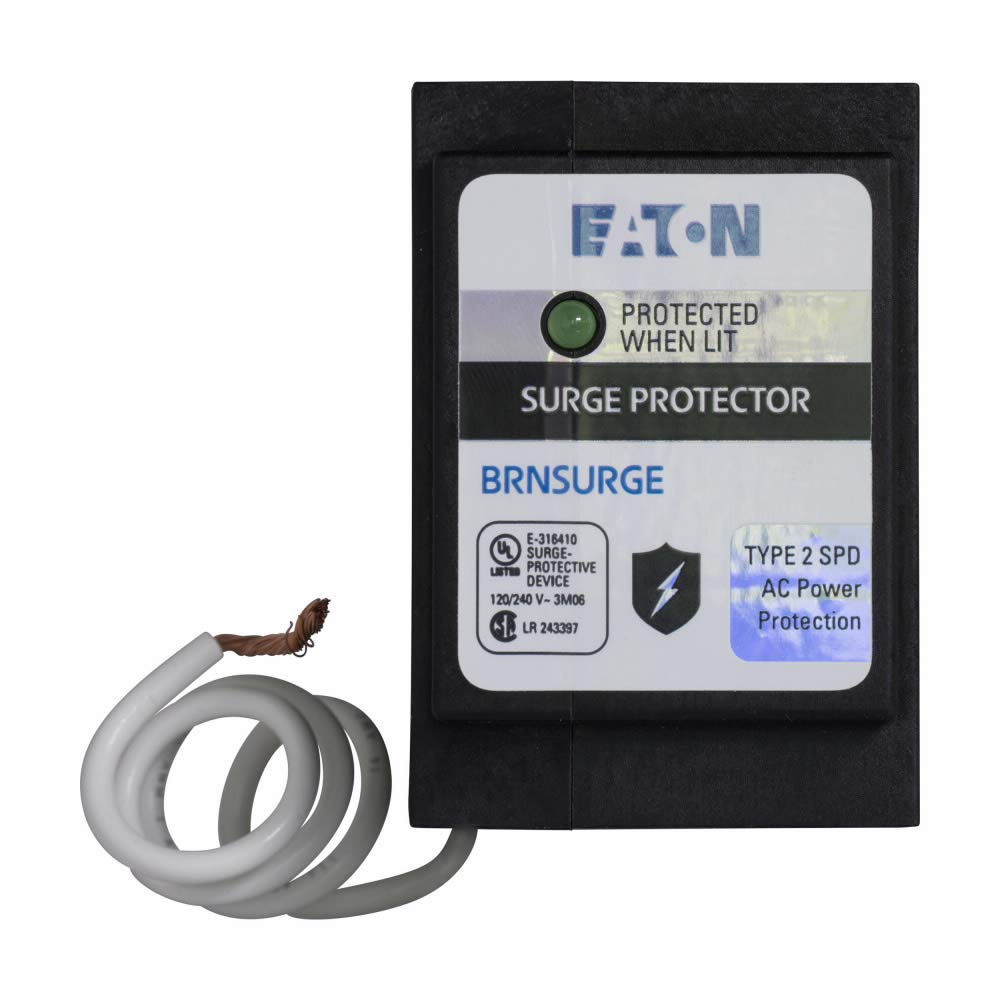

Eaton BRNSURGE Type BR whole-panel surge protective device — 2-pole, 18 kA direct-fit for BR load centers

The Eaton BRNSURGE Type BR is a two-pole whole-panel surge protective device that installs into two branch circuit spaces to reduce transient surge exposure up to an 18 kA surge current rating.

The BRNSURGE Type BR is designed to integrate directly into compatible Eaton Type BR load centers and provides point-of-service surge suppression across both poles of a breaker assembly. It is intended for panel-mounted protection of branch circuits and sensitive electronics where a compact, easy-to-install SPD is preferred. This product is a factory-style, UL-rated surge protective device compatible with standard BR breakers that occupies two adjacent circuit spaces.

How does the BRNSURGE install in a residential or light-commercial panel?

Installation involves plugging the BRNSURGE into two adjacent branch circuit spaces in a compatible Eaton Type BR load center, replacing a standard breaker assembly location. It is a direct-fit SPD that avoids additional wiring complexity while keeping protection inside the panel.

• Mounts into two contiguous Type BR breaker spaces
• No separate enclosure required — installs in-panel
• Simplifies wiring compared with remote SPDs
• Requires a compatible BR load center and standard breaker footprint

What level of surge protection does this two-pole SPD offer?

The device is rated for an 18 kA surge current, which describes its capacity to divert transient energy from short-duration electrical surges. While not a guarantee against all surge events, the rating indicates suitability for protecting many common household and light-commercial electronics from typical transient spikes.

• 18 kA surge current rating (per manufacturer specifications)
• Two-pole protection covers both hot conductors in split-phase systems
• Panel-mounted location helps protect downstream branch circuits
• Designed to handle transient surges rather than sustained overcurrent

What are the practical benefits of using a whole-panel SPD like the BRNSURGE?

Putting surge suppression at the panel offers centralized protection for multiple circuits and reduces the need for point-of-use devices at every outlet. A panel-mounted SPD also keeps protection hardware out of sight and simplifies maintenance and inspection when compared with distributed inline units.

• Centralized protection for downstream outlets and appliances
• Cleaner installation with no extra external enclosures or conduit runs
• Accessible within the load center for visual inspection and service
• Compatible with existing BR breaker architecture for seamless fit

Does the BRNSURGE require special maintenance or monitoring?

Like most non-isolated panel SPDs, it benefits from periodic visual inspection and adherence to manufacturer replacement guidelines. Monitoring is typically done by checking status indicators (if present) and confirming proper panel function; consult Eaton installation instructions for recommended service intervals.

• Periodic visual inspection recommended
• Follow Eaton-specific replacement or end-of-life guidance
• No active maintenance beyond standard panel checks in most installations
• Indicator LEDs or labels (if provided) show operational status

Who is this for: The Eaton BRNSURGE Type BR SPD is aimed at electricians, contractors and homeowners who want a compact, panel-integrated surge suppression solution for Eaton Type BR load centers. It suits projects where centralized protection is preferred over multiple point-of-use devices, and where a two-pole, in-panel SPD with an 18 kA rating meets the expected transient protection requirements for residential or light commercial installations.
