iRhapsody 12V 5-Pin Waterproof Automotive Relay Kit — 5-Pack, 40A with Heavy-Duty 12AWG Leads

iRhapsody's 5-pin 12V waterproof automotive relay is a heavy-duty SPDT switching relay rated for up to 40A, delivered as a five-piece kit with robust tinned-copper leads and a sealed housing for harsh environments.

This relay kit is built for automotive, marine, and off-road electrical projects that demand reliable high-current switching. It combines a standard 5-pin SPDT configuration with 12 AWG primary leads, fast operate/release times, and protection against dust and splash exposure. The relays are optimized for use near batteries, lighting systems, winches, fans, and other 12V accessories where dependable power control and long mechanical life are required.

How much current and power can this relay safely handle?

The iRhapsody relay is specified for up to 40 amps switching at 14VDC, with a maximum switching power of 560 watts. For longer service life and safe operation, operate below the maximum rating—ideally 10–15% beneath the limits.

• Contact rating: NO 40A at 14V DC
• Max switching current: 40A; max switching power: 560 W
• Contact resistance: ≤100 mΩ (measured at 6VDC, 1A)
• Recommended continuous load: keep below ~34–36A to preserve contacts

What electrical and timing specs should I expect when wiring it in?

Designed for 12V vehicle systems, the relay has a nominal coil voltage of 12 VDC and consumes 1.8 W of coil power. It responds quickly with a typical operate time of 7 ms and a release time of 5 ms, which is suitable for most accessory switching tasks.

• Nominal coil voltage: 12 V DC; coil resistance: 80 Ω
• Must operate voltage: 6–8 V DC; must release: 0.6–3.6 V DC
• Maximum applied voltage: 15.6 V DC for short-term exposure
• Operate/release times: ~7 ms and ~5 ms respectively

How durable is the relay in real-world conditions?

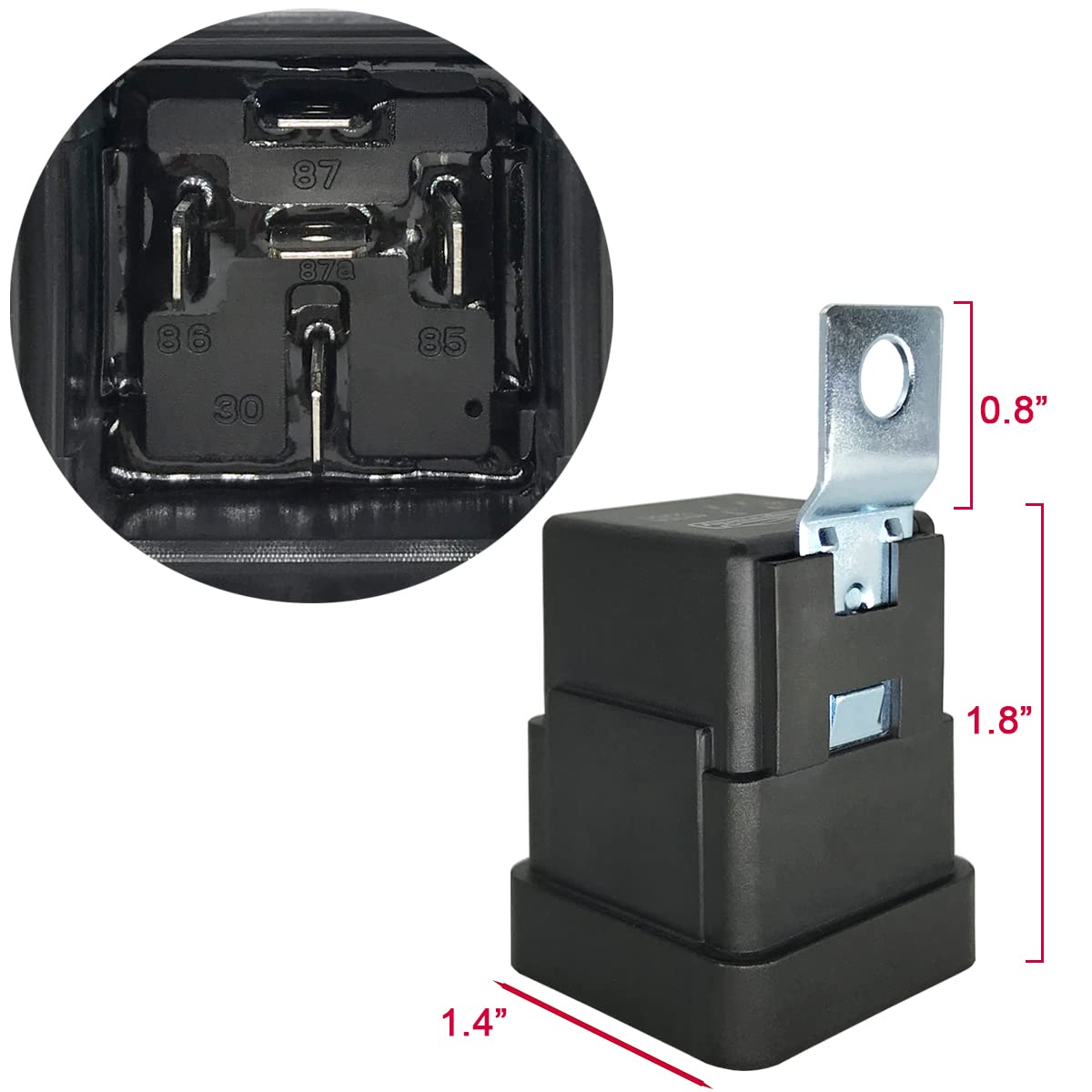

The sealed housing offers strong dust and water-repellent performance for damp and dirty environments, though it should not be submerged. It has long mechanical and electrical life ratings and withstands vibration and shock common in automotive and off-road use.

• Electrical life: about 100,000 operations at 30 ops/min
• Mechanical life: up to 10,000,000 operations
• Temperature range: -30°C to +80°C; humidity tolerance: 40–85%
• Vibration and shock resistance: 10–55Hz at 1.5mm; shock withstands up to 100g damage limit

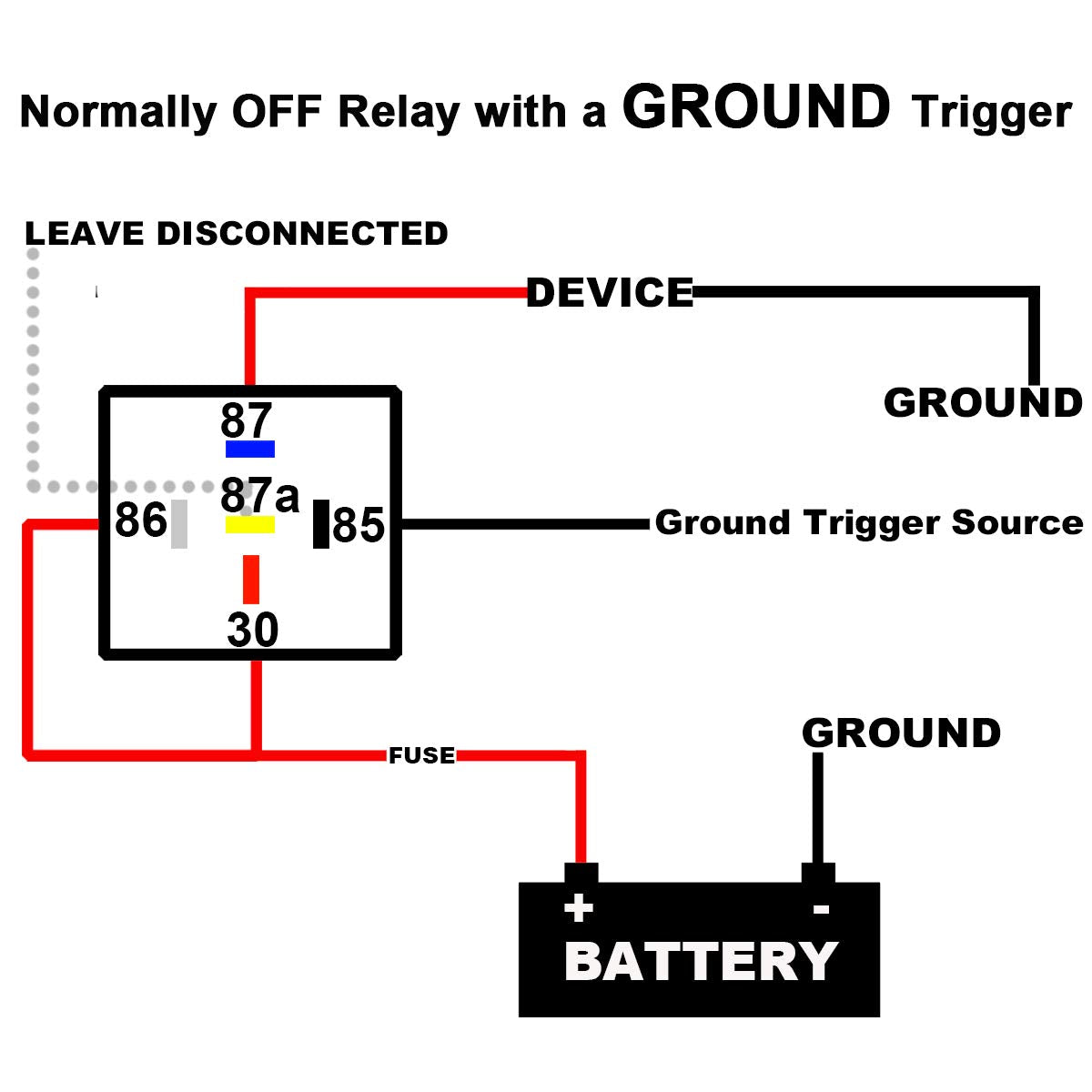

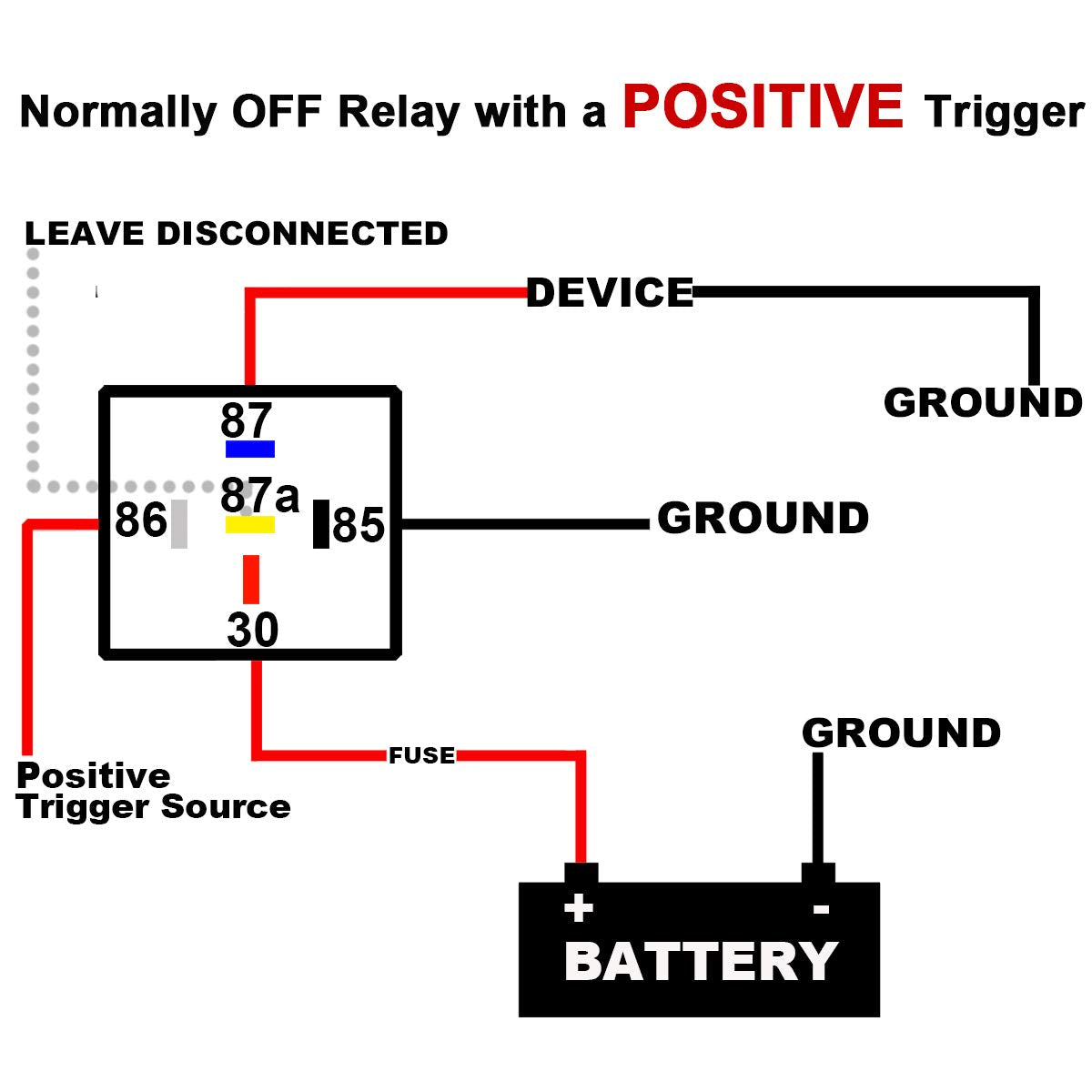

What installation tips and connector details matter?

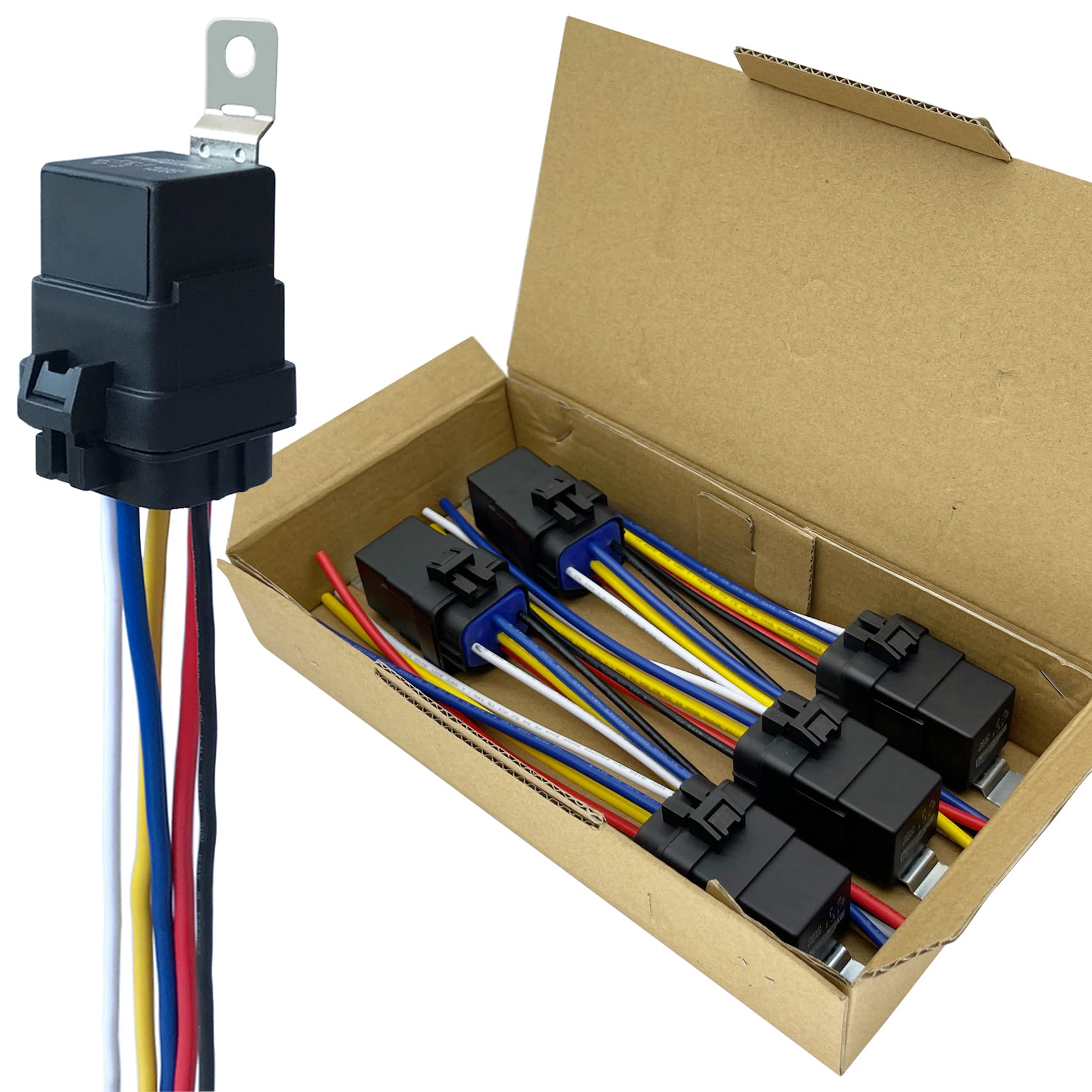

The kit includes five assembled relays with heavy-duty properly gauged leads to simplify installation. Handle the relay carefully when seating into sockets to avoid bending female connectors, and respect wire gauges for load-carrying conductors.

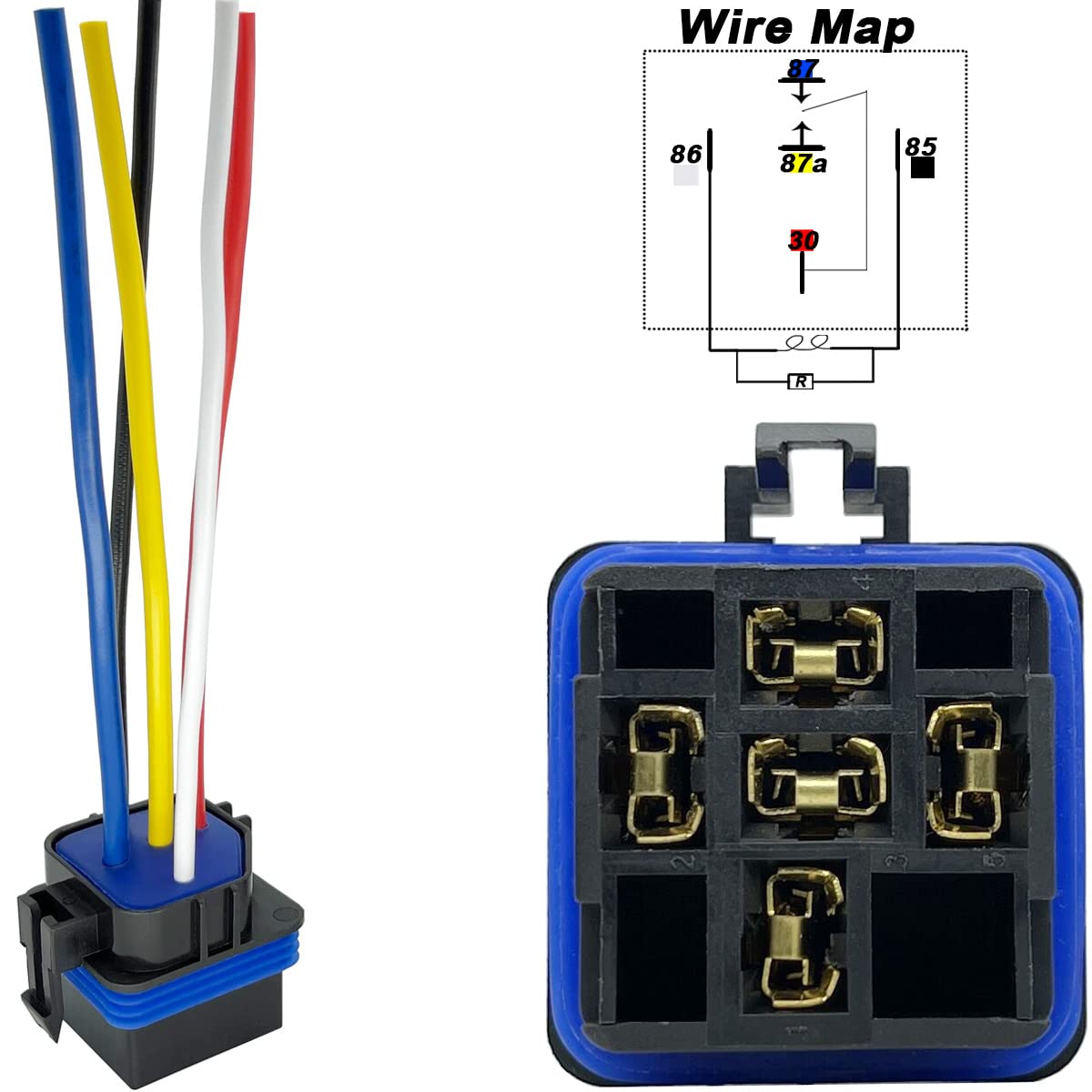

• Primary leads: 12 AWG tinned copper for high-current runs
• Coil leads: 16 AWG for control circuits
• Avoid forcing the relay into sockets; align pins to prevent connector damage
• Use appropriate fuse protection and keep continuous load below rated capacity

Who is this for: technicians, DIY enthusiasts, and fleet maintainers who need a reliable 12V SPDT relay for lighting, winch, pump, fan, or accessory control. The iRhapsody 5-pack is especially useful when replacing multiple relays or wiring several circuits at once—providing a rugged, fast-switching option with heavy-gauge wiring already attached for quicker, safer installations.
